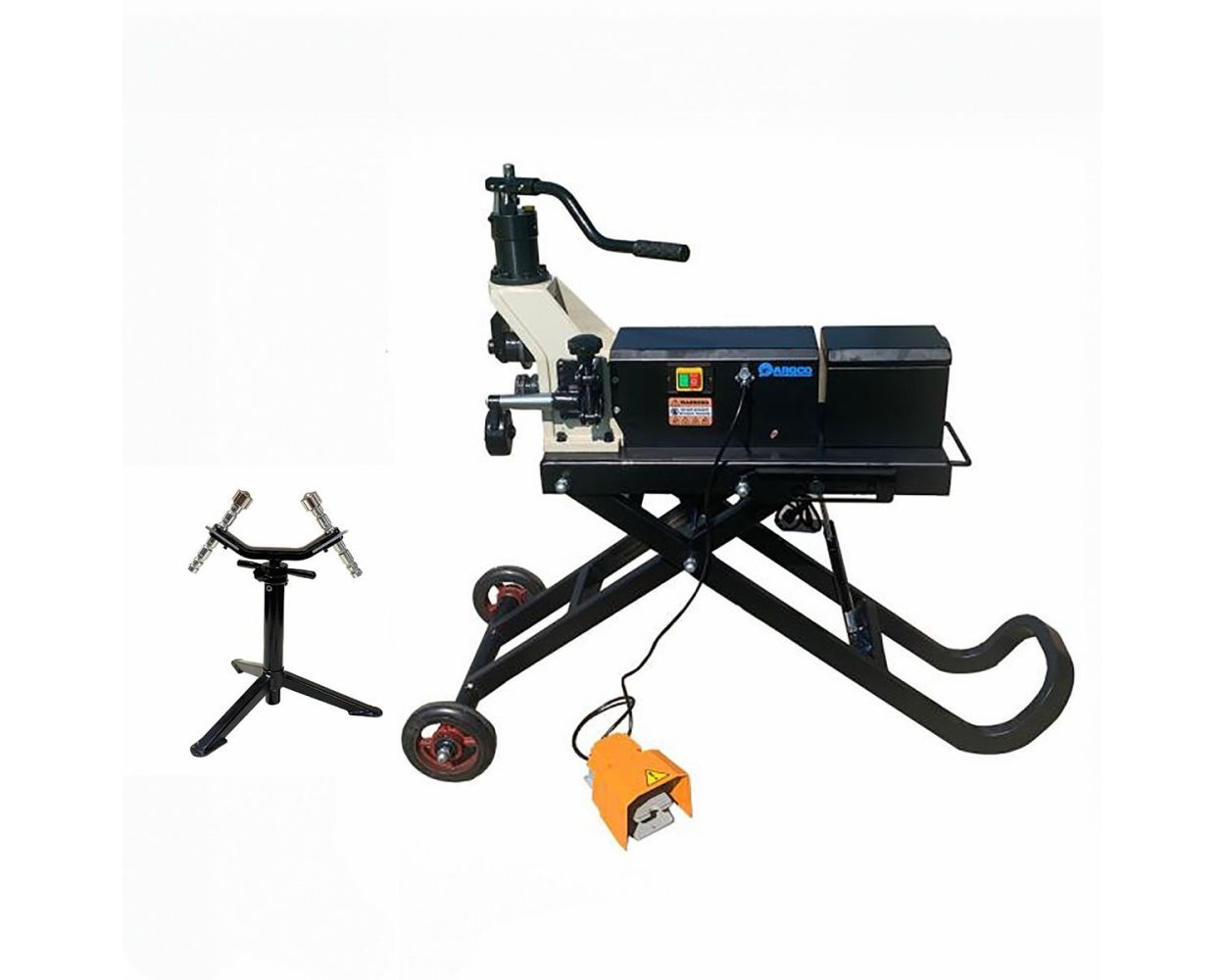

ARGCO RGEH-840A Electric Hydraulic Roll Grooving Machine Capacity 1" to 12" with Collapsible Rolling Stand (Sch 40 - 1" to 8")

Introducing the RGEH-840A Electric Hydraulic Roll Groover that can groove 1" to 12" out of the box. This is a stand alone motor driven roll groover with an advanced hydrlaulic feeding system. This groover can be used in the field or in the shop. Coming with the with the collapsible rolling stand you can easily move this machine around the shop or jobsite. Comes ready to groove with adjustable pipe stand, foot pedal, and pipe stabilizer for pipe 8" and above.

Features:

• Design and rugged structure enables unit to handle mass fabrication duty on jobsite or in the shop.
• Easily move around the jobsite with the collapsible rolling stand.
• Integrated hydraulic feeding pump & groove depth lock nut.
• Specially designed roll set prevents flares on pipe ends.
• Single Phase 1100 Watt 23 rpm Motor
• Pipe stabilizer for pipe 8" and above.
• Capacity: 1" to 12" (1" to 8" schedule 40)
• Max Pipe Wall Thickness: .314" (8 mm)
• Overall Dimensions: 29.5"x16"x30" (LxWxH)
• Net weight: 200 lbs.
• Voltage: 110V

Capacity: 1"-12"

• 1" to 8" Sch 10/40 Aluminum, Steel, and Stainless Steel Pipe
• 10" to 12" Sch 10 Aluminum and Steel Pipe

Standard Equipment:

• RGEH-840 Electric Hydraulic Groover
• 1" to 1-1/2" Drive Shaft
• 1" to 1-1/2" Groove Roll
• 2" to 3" Drive Shaft
• 3-1/2" to 6" Drive Shaft
• 2" to 6" Groove Roll
• 8" to 12" Drive Shaft
• 8" to 12" Groove Roll
• Foot Switch
• Adustable Pipe Stand
• Pipe Stabilizer
• Collapsible Rolling Stand
